Microsoft AZ-800
HOTSPOT
Answer confirmed
Exam Topics Questions
Preamble

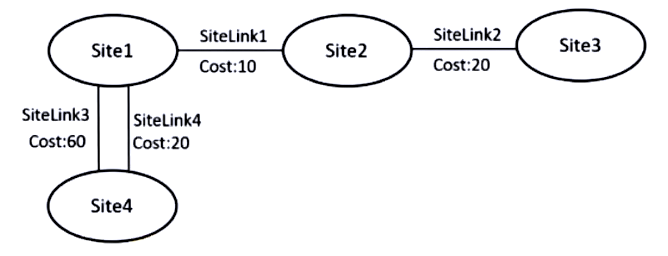

Your network contains an Active Directory Domain Services (AD DS) forest. The forest contains the sites and site links shown in the following exhibit.



The sites contain the bridgehead domain controllers shown in the following table.

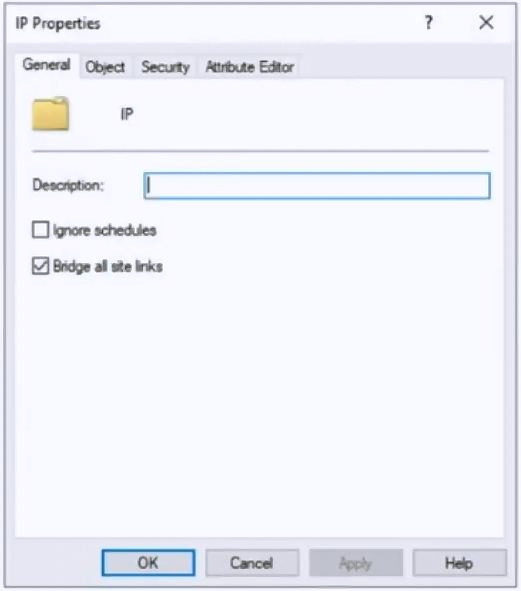

The IP intersite transport container is configured as shown in the following exhibit.

Question

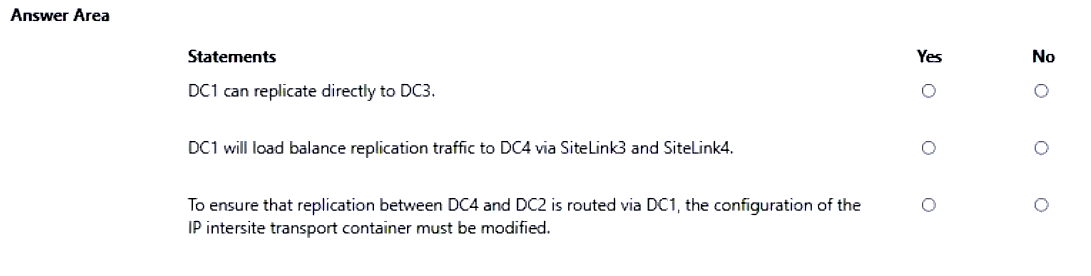

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

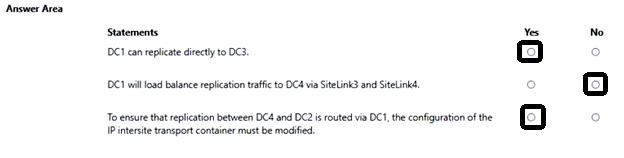

Proposed answer

Suggested answer

Correct answer

The suggested answer is correct

  • Correct. Bridge all site links option allows the ISTG (inter site topology generator) to built automatic replication-connections among all sites. All site links are transitive for the ISTG. It means that connections between sites which do not have a direct site link can be build. This Active Directory Sites and Services configuration is valid for the whole forest and thus binding for all domains of the forest. Reference
  • Correct. Active Directory uses site links as indicators for where it should create connection objects; the connection objects use the actual network connections to exchange directory information. Reference
  • Correct. Yo should disable Bridge all site links option in IP inter-site transport container

Without site links to connect your Active Directory sites, the domain controllers in the different sites would not be able to replicate the Active Directory database information to one another. Every site must belong to at least one site link, or it will be unusable and the domain controllers in that site will be isolated. Active Directory uses site links as indicators for where it should create connection objects; the connection objects use the actual network connections to exchange directory information.

Reference



Comments
Ksk08

4 weeks, 1 day ago

  • "DC1 can replicate directly to DC3": There is no direct site link from Site1 to Site3. Replication would need to go through Site2. Therefore, this statement is No.
  • "DC3 will load balance replication traffic to DC1 via SiteLink1 and SiteLink4": Since there is no direct path from DC3 to DC1, and load balancing requires multiple paths with similar costs, this statement is No.
  • "To ensure that replication between DC4 and DC2 is routed via DC1, the configuration of the IP inter-site transport container must be modified": To route replication specifically through DC1, you would need to adjust site link costs or configurations. This statement is likely Yes.

upvoted 1 times

JimmyC

5 months, 1 week ago

"Bridge all site links" will automatically create replication connections between all sites that can communicate with an existing chain of site links. Thus A is Yes, and C is No.

upvoted 1 times

SIAMIANJI

6 months, 1 week ago

The answer is Y N N

upvoted 2 times

GeorgiAngelov

6 months, 4 weeks ago

I think that it should be: Y Y N

upvoted 1 times
